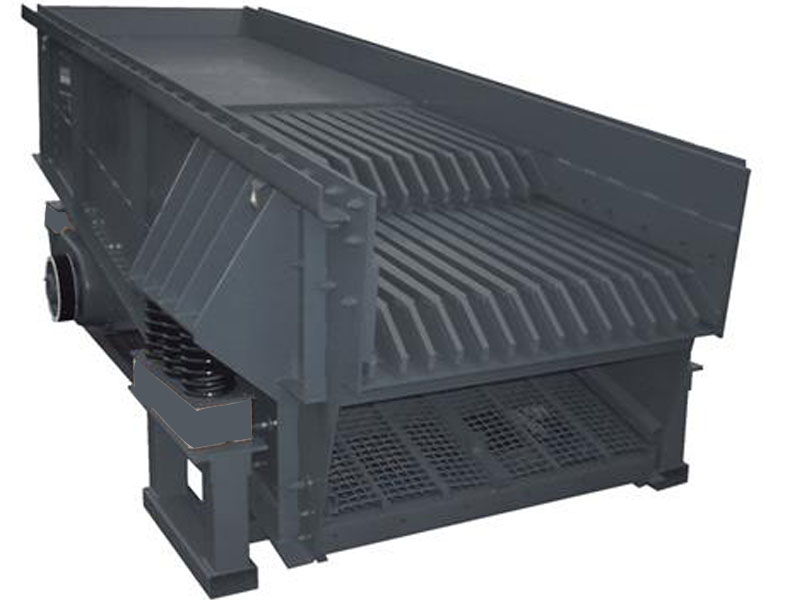

Grizzly Feeder
| Sno | Model No | Tray Size WxL (mm) |
Max. Feed Size(mm) |
Capacity (TPH) | Drive Type | Motor (KW) |
|---|---|---|---|---|---|---|
| 1 | BGF 1040 | 900 x 4000 | 450 | 200 | Unbalance Motor | 2 x 4.3 |
| 2 | BGF 1142 | 1100 x 4200 | 700 | 300 | Unbalance Motor | 2 x 4.3 |
| 3 | BGF 1344 | 1300 x 4400 | 900 | 400 | Unbalance Motor | 2 x 7.5 |

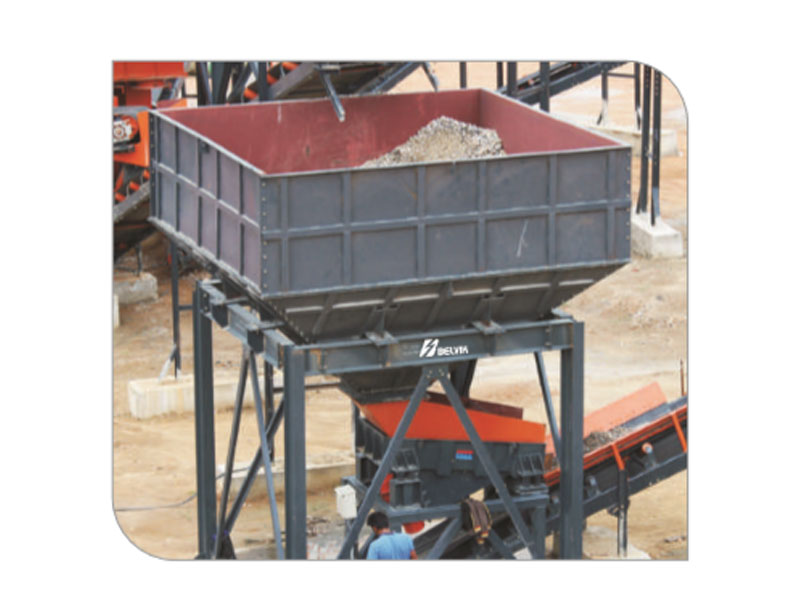

Pan Feeder
| Sno | Model No | Tray Size WxL (mm) |
Max. Feed Size(mm) |
Capacity (TPH) | Drive Type | Motor (KW) |
|---|---|---|---|---|---|---|
| 1 | BPF 158 | 1500 x 800 | 450 | 120-150 | Unbalance Motor | 2 x 1.1 |
| 2 | BPF 208 | 2000 x 800 | 700 | 200-250 | Unbalance Motor | 2 x 1.9 |
| 3 | BPF 210 | 2000 x 1000 | 900 | 300-350 | Unbalance Motor | 2 x 2.2 |
